If distance A on your boat is smaller than called out in the table below, the anchor should fit and deploy without difficulty.

Anchor Size (lbs)*Distance A (inches)
87.2
138.7
179.6
25 10.4
3511.6
4513.0
5513.9
6514.8
8515.7
10517.0
12518.3
15520.8
17522.2

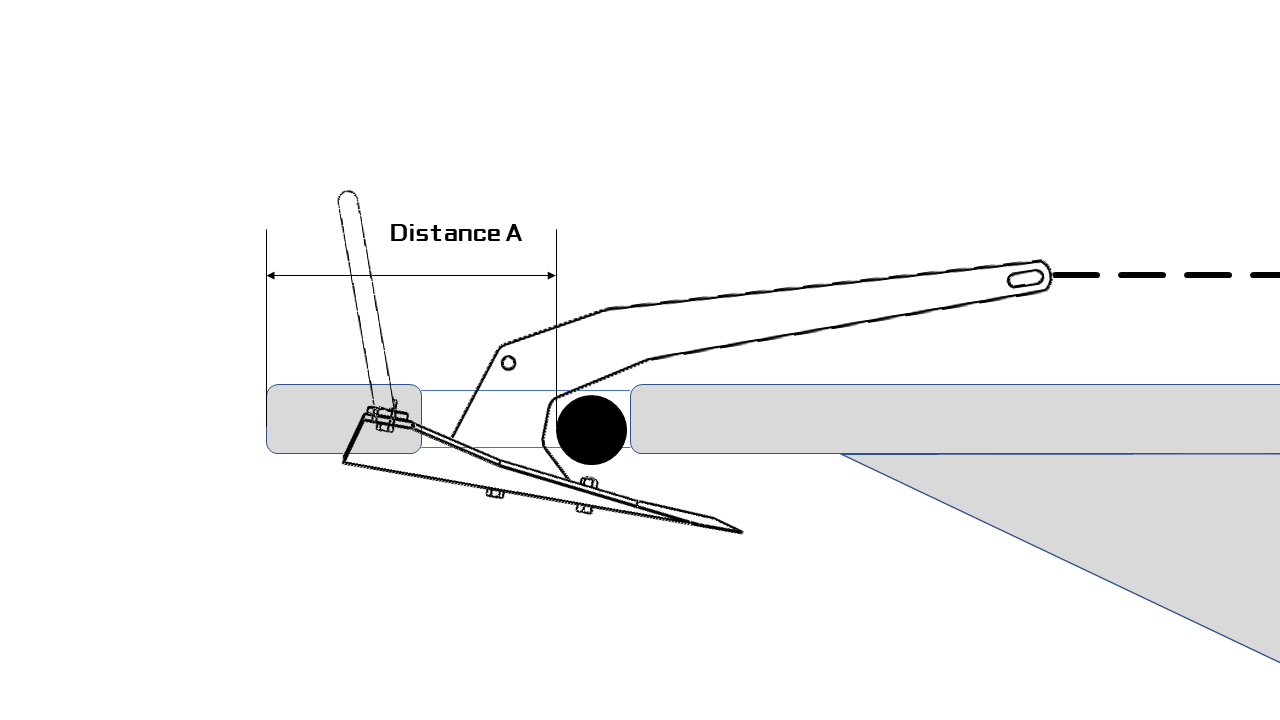

*Distance A is defined as distance from the roller to the end of the pulpit

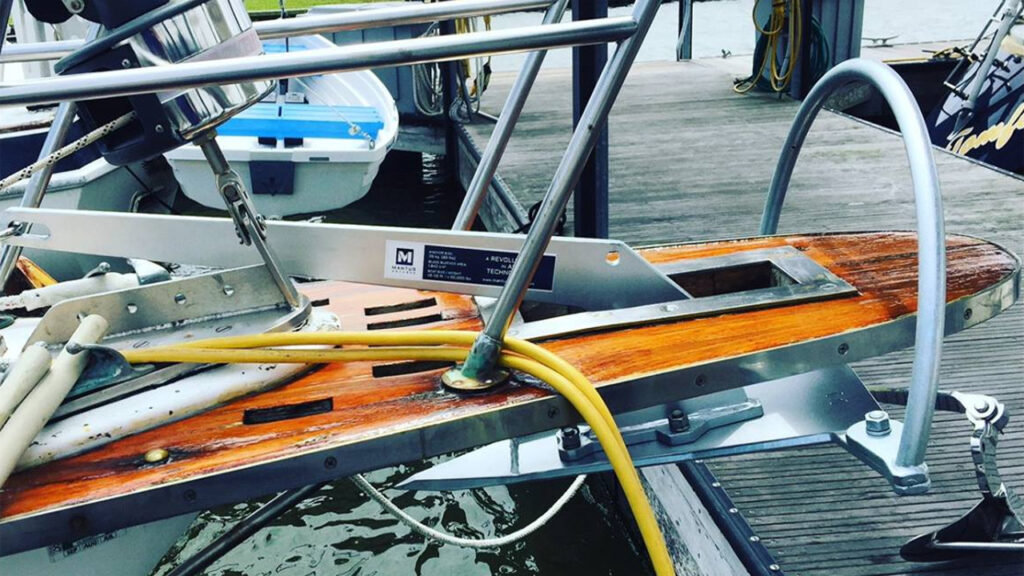

Mantus Anchor on Bow Pulpit 4

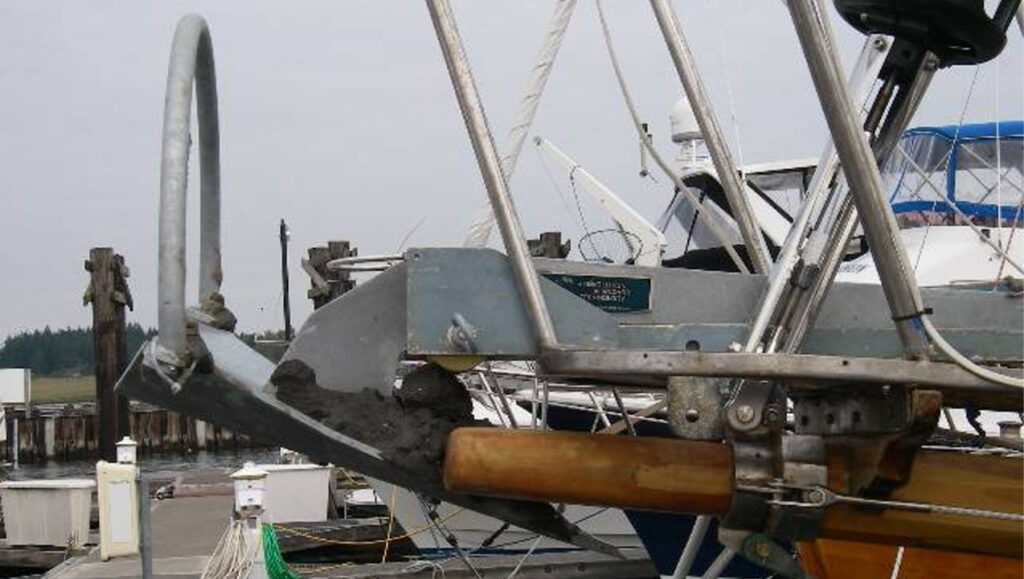

Mantus Anchor on Bow Sprit 1
Mantus on Poweboat Pulpit
Mantus Anchor on Bow Sprit 11
Mantus Anchor on Bow Pulpit 6
Mantus Anchor on Bow Pulpit 5
Mantus Anchor on Bow Pulpit 7
Mantus Anchor on BowPulpit 9

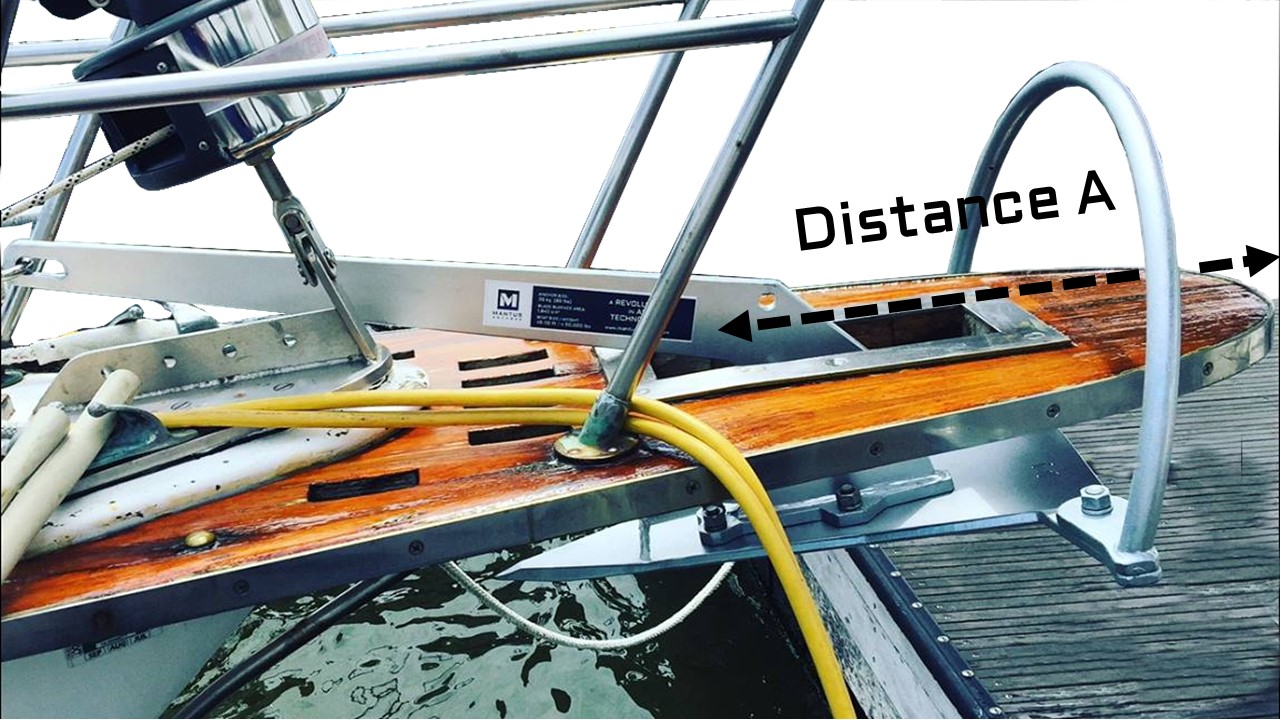

anchor on bow pulpit for website
Mantus Anchor on Bow Pulpit 3
