Model M2

The M2 Anchor

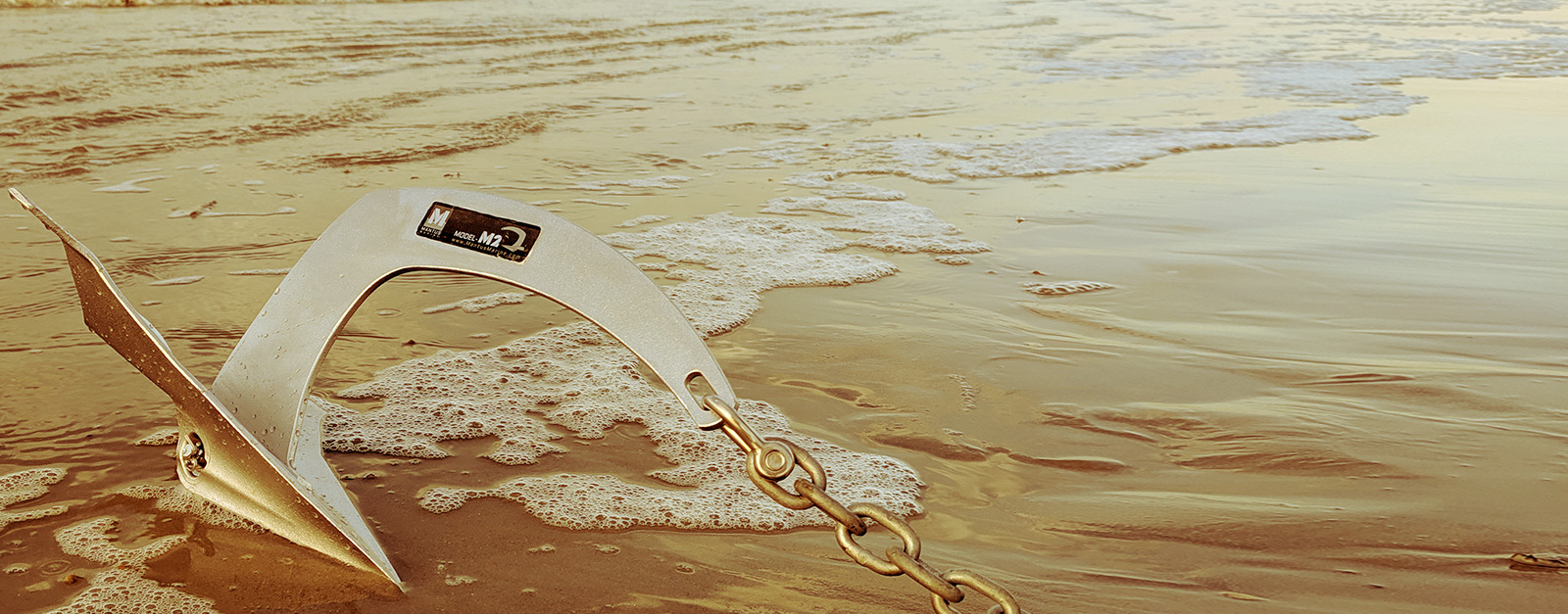

DIGS LIKE NO OTHER  M2 Mantus Anchor is designed to penetrate dense grassy bottoms and set with unparalleled holding power. Expect the Mantus Anchor to set every time the first time!

EASY TO STORE  Whether you are a long range cruiser, racing or going out for a day sail. The Mantus breaks down for easy storage, so you can store one or two as spares without taking up much needed boat space. A single bolts is used for the construction to facilitate easy dissassembly and storage.

BUILT STRONG

  • Formed from high quality steel plate and high end precision casting.
  • ASTM certified bolts are oversized with a large margin to ensure safety.
  • Although the bolt used in the assembly is load bearing, only a fraction of the load is transmitted to the bolt.
  • Stainless Steel anchors feature a 2205 Duplex shank and 316L stainless steel fluke. The surface is hardened by shot-peening and then electro-polished to provide maximum corrosion resistance.
  • In the carbon steel version every part of the anchor system is hot-dipped galvanized for corrosion protection. (All shanks are HT ASTM 514 Steel and flukes are mild steel A36 equivalent).
  • Nose of the anchor is reinforced to guarantee a lifetime longevity.

DESIGNED FOR FIT Designed to fit boats with bow sprits and bow pulpits.

LIFETIME WARRANTY   *see Warranty section for details.


Shank: Uses Hi Test Steel, Yield Strength 690 Mpa

Retrieval Hole: Used to rig emergency retrieval line or tandem anchor set up.

Fluke: Concave shaped used for the fluke provides the maximum resistance to movement.

Ear tabs: increase the angle of attack, and thus pressure on the nose for better sea bed penetration.

Shank/Fluke Bolted Joint: One oversized 316 Stainless Steel bolt for ease of assembly. The bolt is subject to only a small fraction of the load applied to the anchor

Nose Ballast cross section is optimized for best possible setting ability.

After the release of the Mantus M2 Model we often get the question: which one is better?  Both Anchors have an amazing setting and resetting ability and both are excellent choices for a primary anchor, but each has its own small specific advantages.  Both anchors roll over well in most bottom conditions and it is rare for a properly weighted anchor to end up upside down, nevertheless  M1 Anchor due to its rollbar is better at rolling over in a really soft silty bottom. The M2 anchor is less likely to get plugged up with muddy weeds, and without the need for the roll bar M2 is less bulky. Thus the M2 model provides a better fit for boats with bow pulpits with slotted anchor housing and bow sprits.



M2 Mantus Anchor Details

Anchor Sizing

DIMENSIONS AND FIT

DIMENSIONS

M2 Anchor Dimensions

M2 MODEL DIMENSIONS IMPERIAL (inches)
ABCDEFGHI
8 lbs18.512.310.95.85.21.00.412.39.1
13 lbs21.214.112.46.65.91.20.414.010.4
17 lbs23.615.713.87.36.61.30.515.611.6
25 lbs26.317.515.48.27.41.50.517.412.9
35 lbs29.019.317.09.08.11.60.619.214.3
45 lbs31.721.118.69.88.91.80.620.915.6
55 lbs34.122.719.910.69.51.90.722.516.8
65 lbs35.723.820.911.110.02.00.723.617.6
85 lbs39.526.323.112.311.02.20.826.119.4
105 lbs41.827.824.513.011.72.30.827.620.6
125 lbs45.530.326.714.112.72.50.930.122.4
155 lbs47.931.928.014.913.42.70.931.623.5
175 lbs50.633.729.615.714.12.81.033.424.9



M2 MODEL DIMENSIONS METRIC (mm)
ABCDEFGHI
3.6   kg471314276146132269311232
5.9   kg5403593161681513010356265
7.7   kg6003993511861683311396295
11.4 kg6684453912081873713441329
15.9 kg7374904312292064114487362
20.5 kg8055364712502254515532396
25.0 kg8655765062692424817572425
29.5 kg9086045322822545017600447
38.6 kg10026675873112805619662493
47.7 kg10627076223302975920702522
56.8 kg11567706773593236422764569
70.5 kg12168107123783406723803598
79.5 kg12858557523993597125849632

Metric Sizing Guide (click to enlarge)

Imperial Sizing Guide (click to enlarge)

ANCHOR SIZING GUIDE

Use the following guide to determine what size of anchor to use:

When making sizing recommendations for a working anchor we are generally referring to the needs of a cruising boat spending most of its time on anchor. In doing so we try to envelope high sustained winds (50 kts) and assume poor holding conditions (low viscosity bottoms). Some may think these recommendations to be too conservative especially when compared to sizing tables from other manufacturers. Companies often make claims of superior anchor efficiency, stating that their small anchor X will outperform a much heavier anchor from their competitors and often use sizing charts as a marketing tool to that end, recommending anchors and anchor systems that are dangerously undersized for their intended use. Comparing surface area can be a good judge for potential holding capability. Our anchor sizing recommendations are presented in the table below and divided in three categories: Lunch Anchor category is recommended for lighter use, expected winds under 30 knots, working anchor for winds under 50 knots and finally, storm anchor recommendations are intended for winds above 50 knots. These recommendations are made assuming the worst case scenario, a poor holding bottom and thus may seem conservative but we believe are accurate.





OUR WARRANTY


Mantus anchors are covered by a LIFETIME warranty. If at anytime you are dissatisfied with our product, please contact us for a replacement or refund. If an anchor becomes damaged we will ship a replacement part – shank, fluke or roll-bar. (Only exception is the galvanized coating on the anchors, it carries a 3 year warranty)

CONSTRUCTION GUIDE

Fasteners are provided with every Mantus Anchor. In the event of replacing a lost fastener, please make sure to always use proper size. Always use locking washers, tighten the nut securely and pin the slotted nut

Click here to download a printable pdf of the assembly instructions.





RETURN POLICY

We stand by our product and offer a no questions asked return policy if you find that your anchor does not work as advertised. Follow the link below for more information on returns.

RETURNS

CALL US WITH ANY QUESTIONS:
WITHIN THE US: 1-855-262-6887
BEYOND THE US: 469-226-3468 / 469-878-4083
