Mantus Anchor Bow Rollers
The Mantus anchor bow roller is designed to fit an anchor of any design and when combined with the anchor-mate, it provides an ultimate solution for anchor storage.
- Rugged 316 stainless steel construction
- Beautiful Mirror Polish
- Slotted Delrin rollers designed to align the chain before it enters the windlass to avoid chain skipping.
- Slotted roller housing allows the Mantus anchor roller to create an endless custom configuration to guarantee a perfect anchor fit.
- Easily integrates the Anchor-Guard

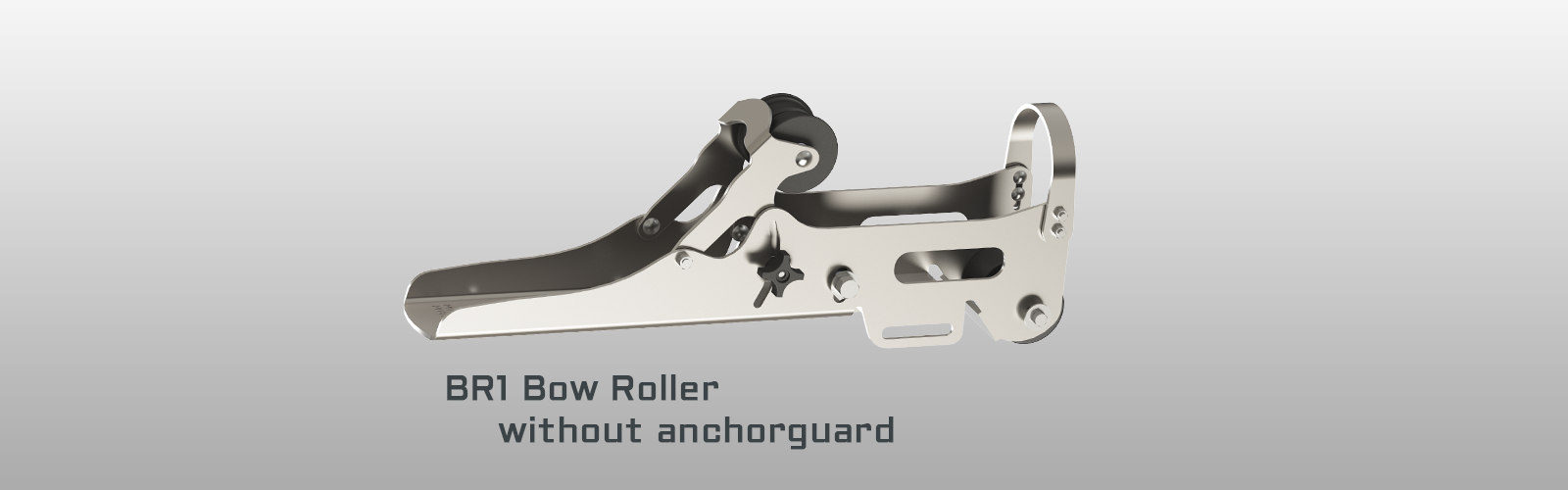

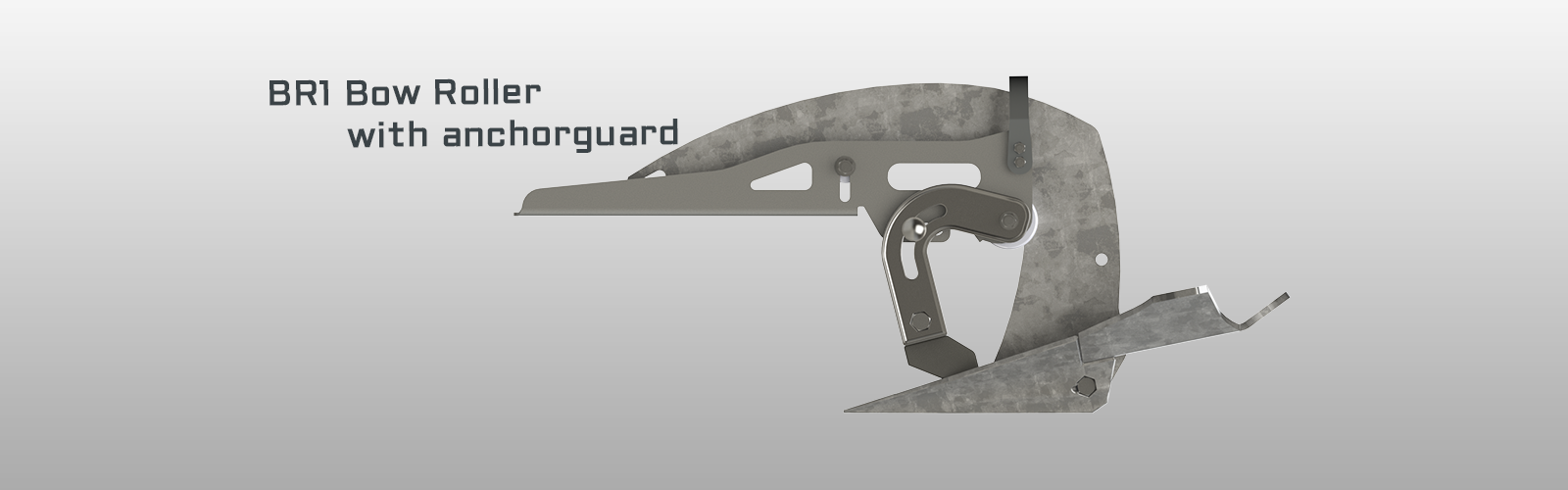

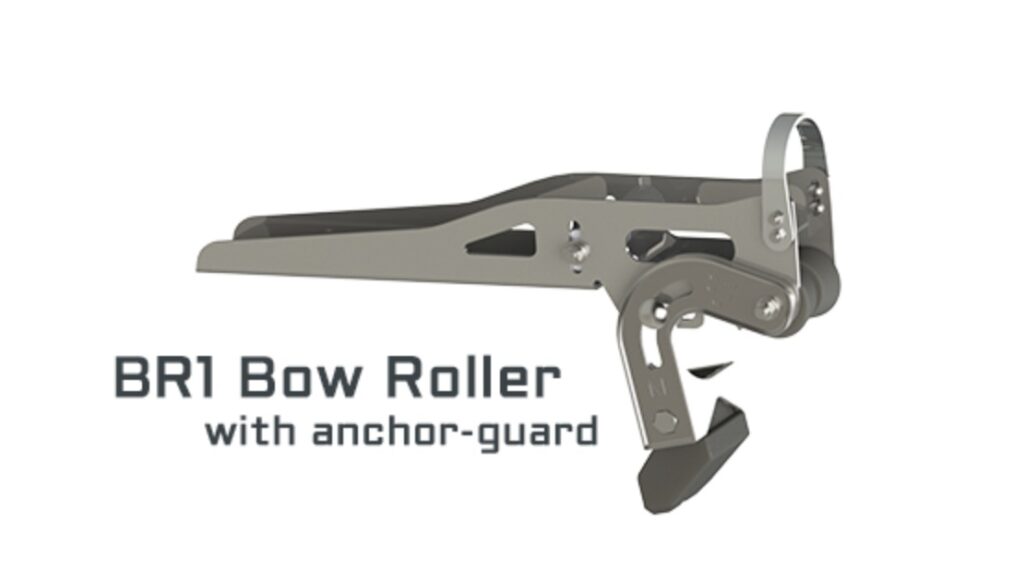

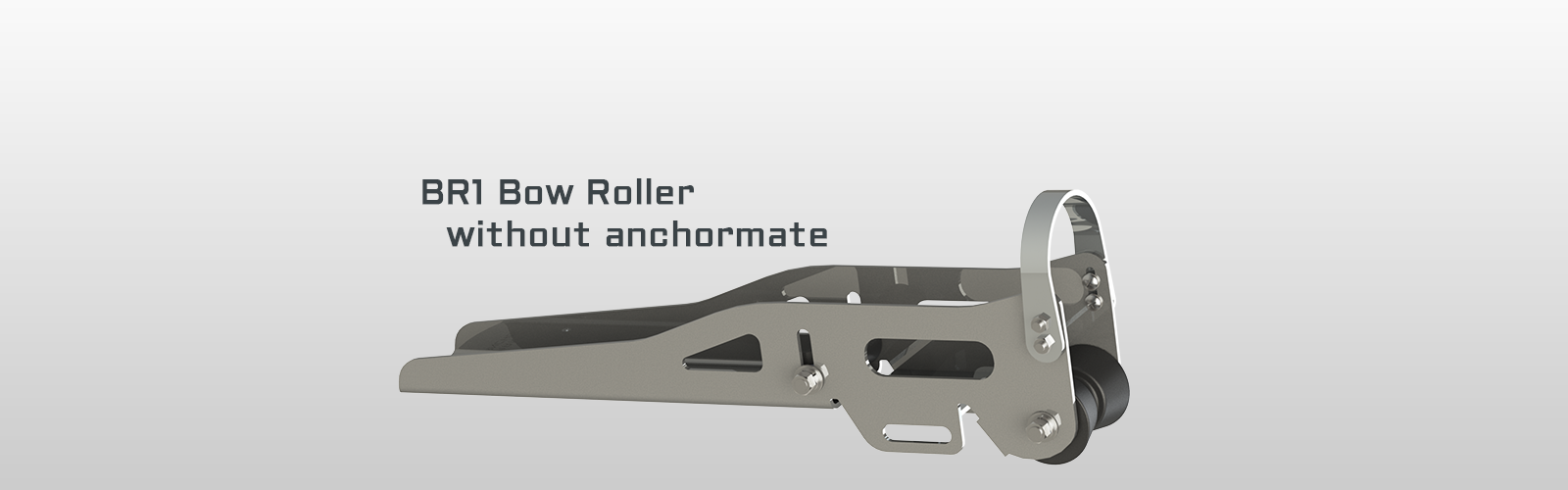

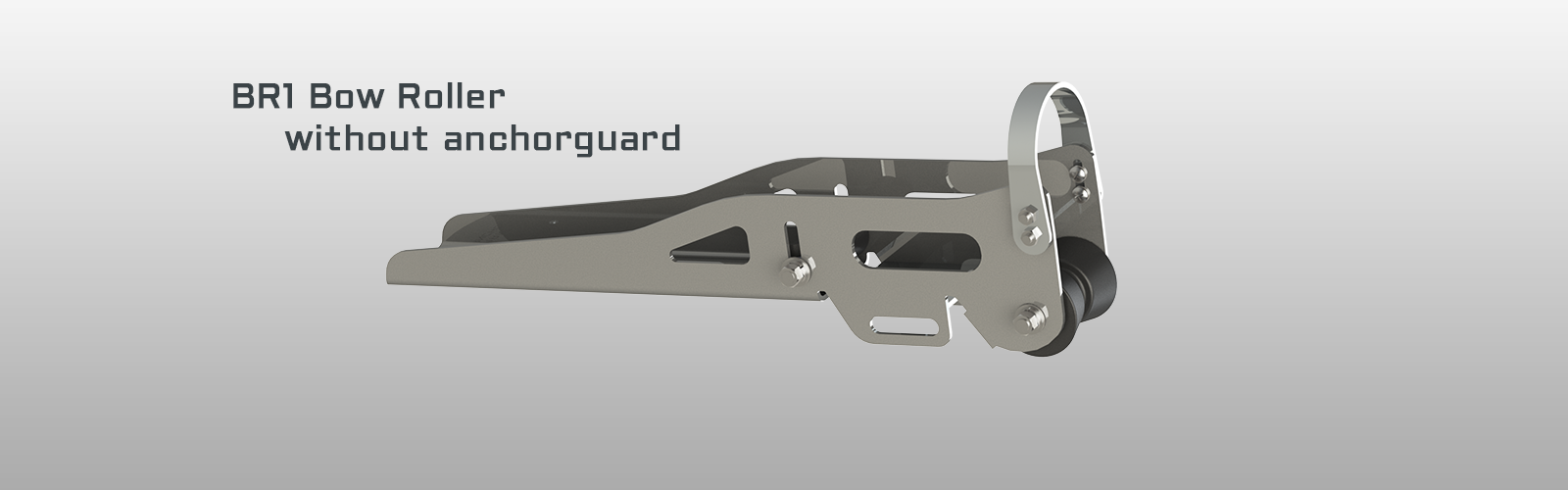

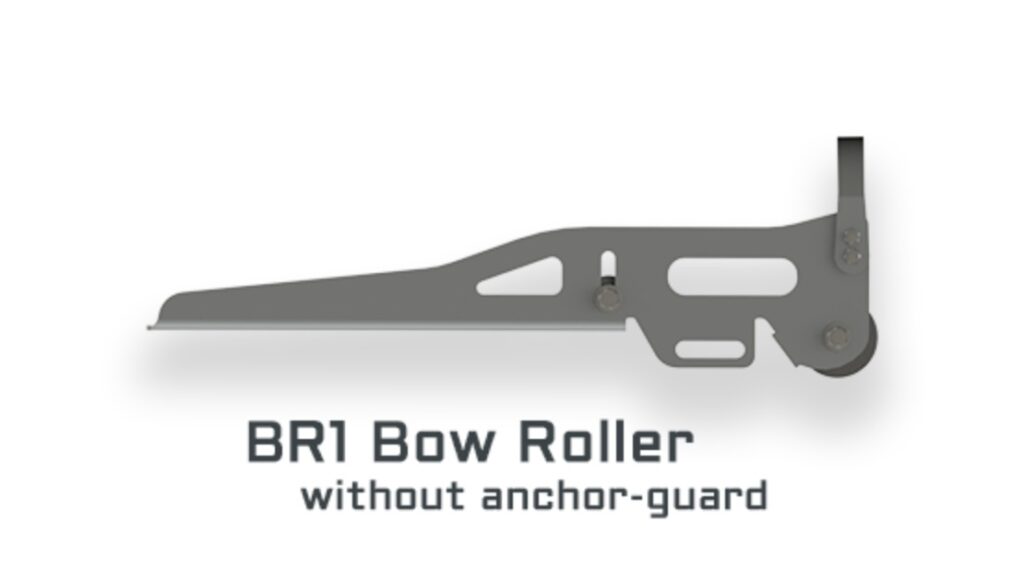

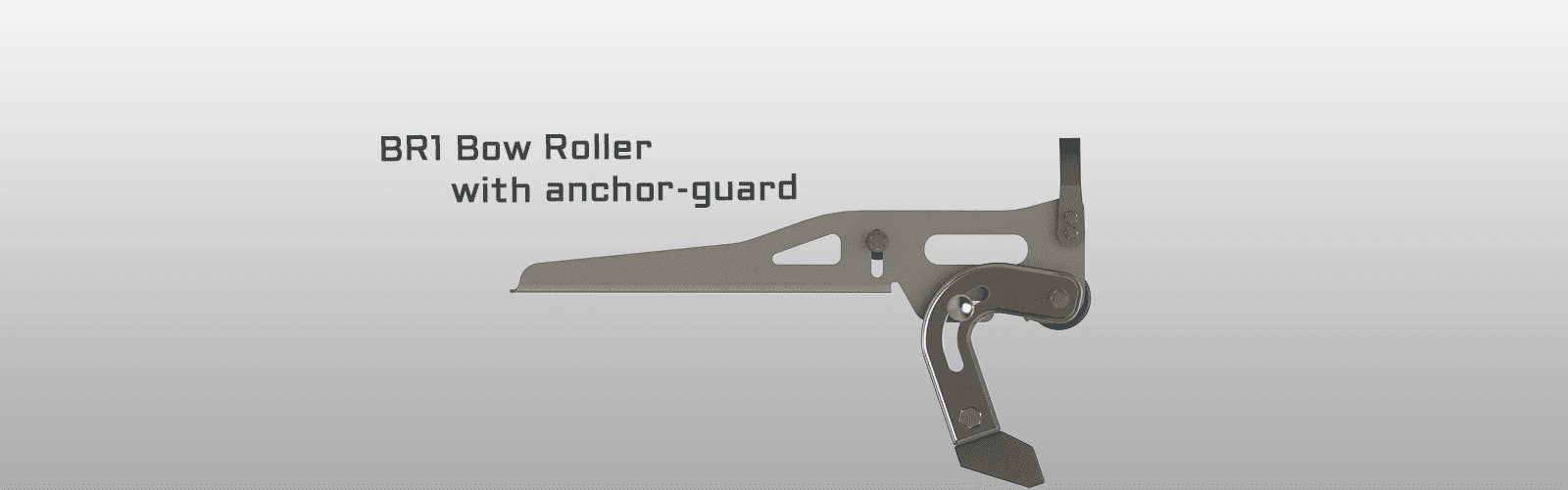

BR1 Design: Does NOT feature the top brake assembly

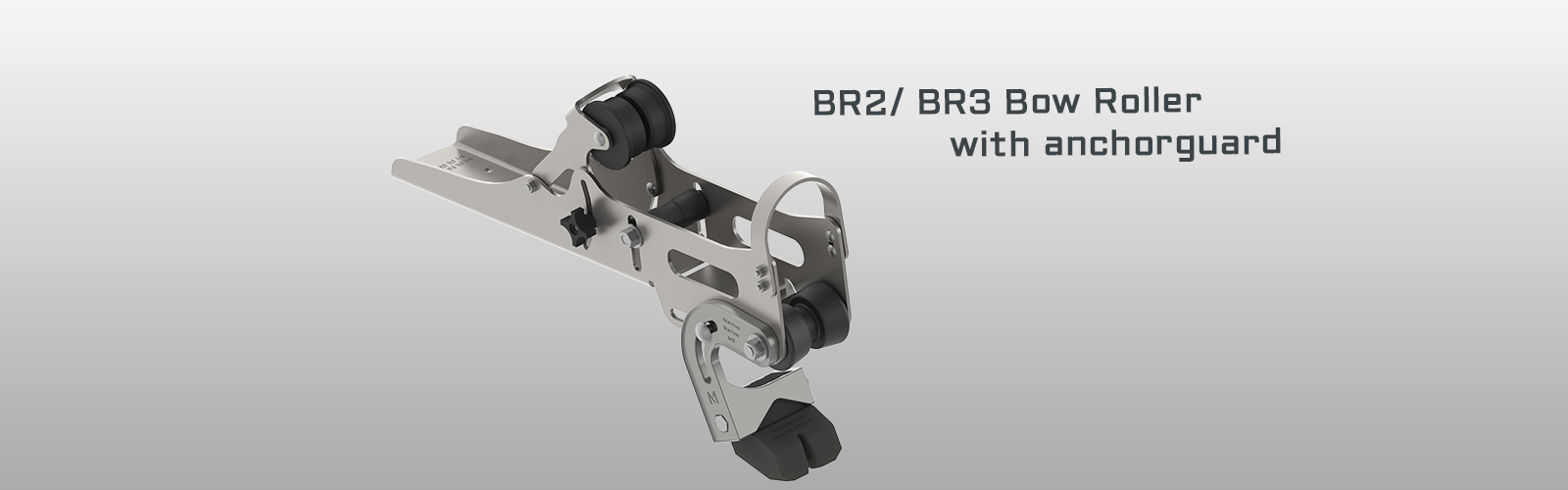

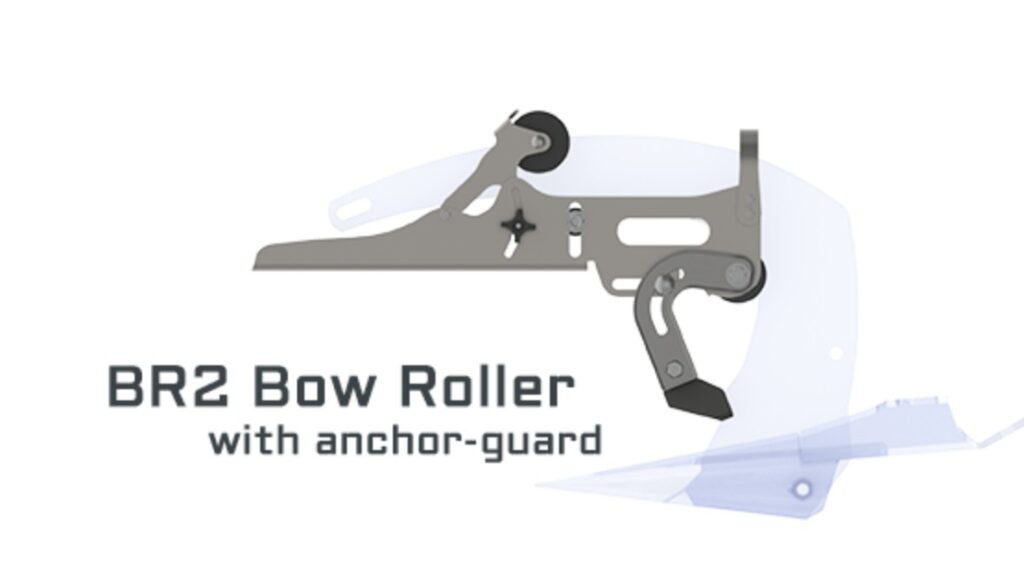

BR2/BR3 Design: Incorporates the top brake assembly
Top brake assembly serves two functions:
- In the pushed down position it stabilizes the stored anchor. Spread the two spring loaded rollers and slide over the anchor shank, lock the brake in place with the knobs on the side.
- In the upright position the top brake assembly controls the angle at which the anchor is deployed, making sure it travels away from the boat and does not hit structures on deck on its way.
The Mantus anchor bow roller is the smoothest, most versatile bow anchor mount available.
Bow Roller Sizing
|Bow Roller Size||Boat Size (Feet)||Mantus Anchor Size (lbs)||Price (USD)||Price with AnchorGuard (USD)|
|BR1||18 to 35||8 - 35||$298||$412|
|BR2||36 to 46||45 - 85||$638||$752|
|BR3||47 to 70||105 - 175||$995||$1250|
CALL US WITH ANY QUESTIONS:
WITHIN THE US: 1-855-262-6887
BEYOND THE US: 469-226-3468
