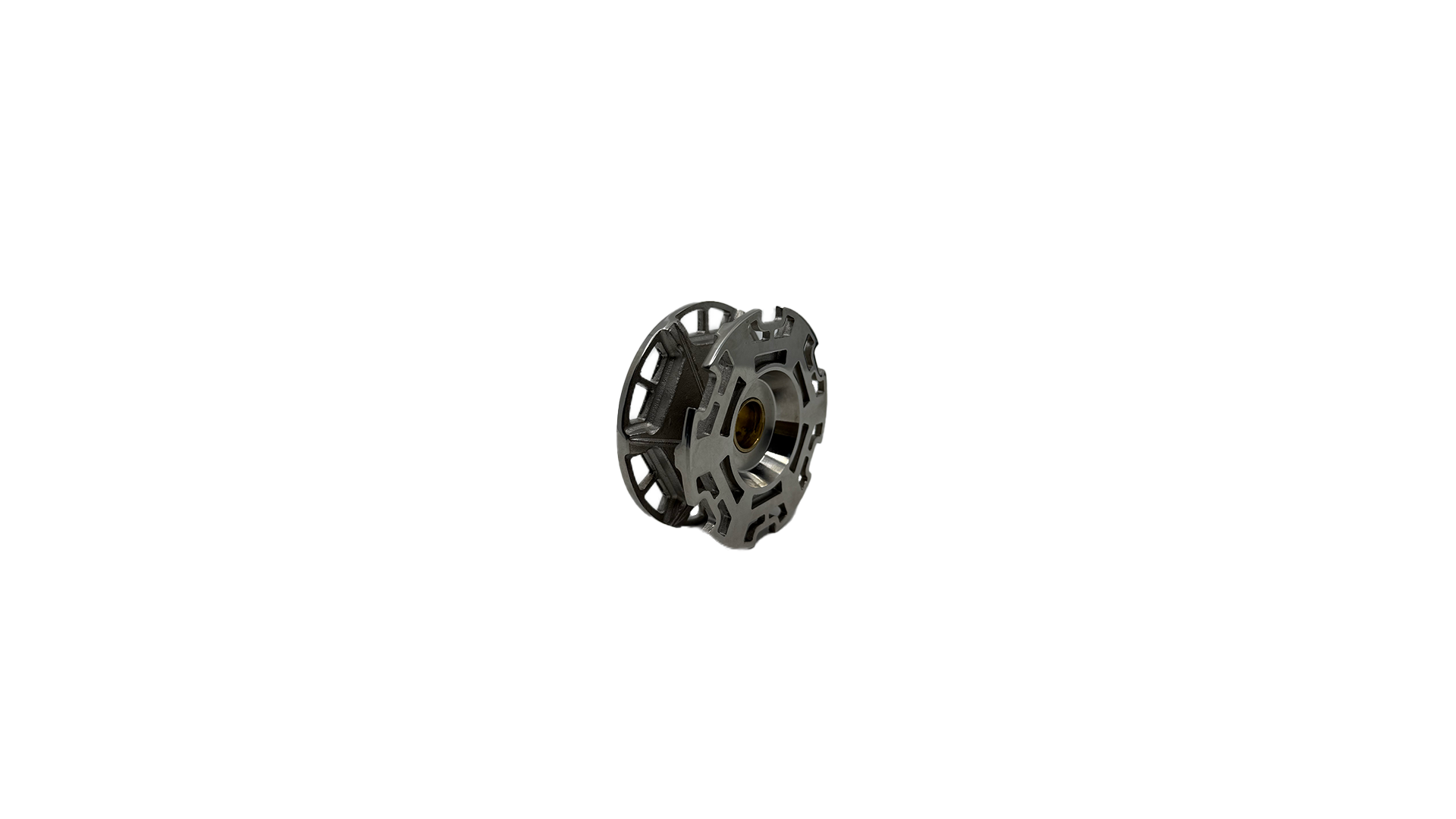

HR/HC 950 windlass Muir with Gypsy
From: $1,423.14
Description
| Name | Specifications |
|---|---|
| Recommended Vessel Length | 7-11m |
| Power Supply Options | DC 12V |
| Recommended Muir Circuit Breaker | 80A (12V) |
| Motor (Watts) | 750Watts |
| Amps Workload | 70A (12V) |
| Max Load | 464Kg |
| Workload | 154.7Kg |
| Max Line Speed | 21m/min |
| Compatible Chain Sizes | 8 mm (5/16“) |
| Compatible Rope Sizes | 12mm (1/2″), 14mm (9/16″), 16mm (5/8″) |
| Auto Anchor Compatible | Yes |
| Net Weight DC | 13Kg |
| Manual Operation | N/A |
Features
- Brushed finished 316 stainless steel housing
- Polished stainless steel components
- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor
- Superior, heavy-duty Italian drive train
- Chain pipe & peeler
- Independent gypsy and capstan operation
- Front double twin footings
- Suits multiple global chain standards
- Deck isolation pad
Additional information
| Weight | 35 lbs |
|---|---|
| Dimensions | 15 × 14 × 10 in |
| Package Includes: | Circuit Breaker and Mounting Panel, Plastic Deck Foot Switch x 1, Quick Fit Adaptor, Deck Mounting Fasteners, Clutch Release Handle, Installation Booklet, Operational Manual |
