Description

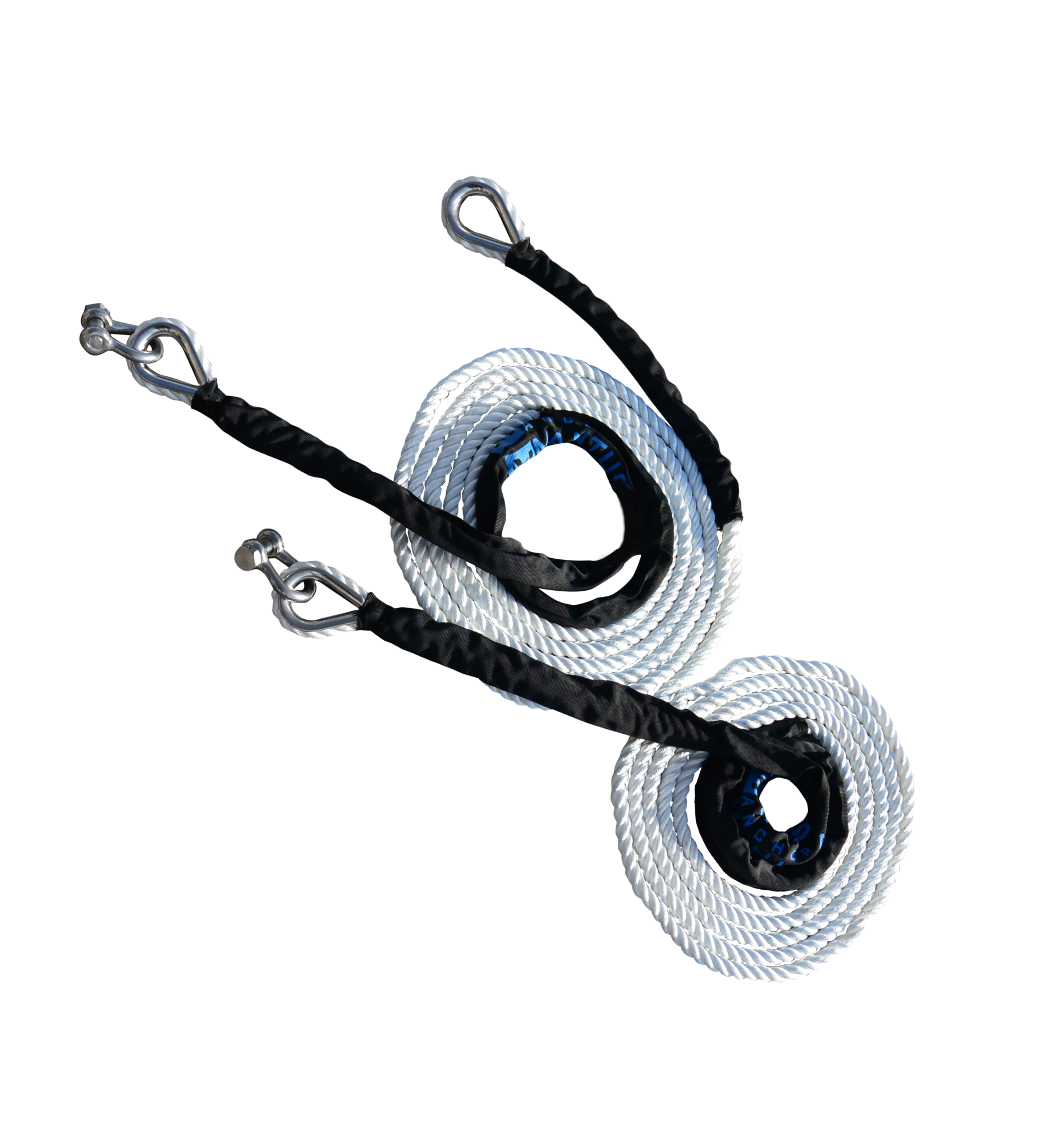

Introducing the Mantus Anchors Bridle/Snubber System:
• Strong and Durable
• Designed to absorb the shock load from wind gusts and wave as high as 3 feet
• Employs chafe protection to all areas exposed to rubbing
• Uses heavy duty 316L stainless steel shackles and thimbles
• Mantus Chain Hook/Grabber sized for your chain
• Carabiner used to attach the bridle to the Mooring line
So more simply said the bridle ensures that your anchor has the highest chance of staying put and your boat staying intact.
| Bridle Size | Small | Medium | Large |
|---|---|---|---|
| Boat Size | 30 – 40 feet | 40 – 50 feet | 50 – 70 feet |
| Rope: Three Strand Nylon Diameter | 5/8″ SWL 1525 lbs UBS 12,200 lbs | 3/4″ SWL 2087 lbs UBS 16,700 lbs | 1″ SWL 3675 lbs UBS 29,400 lbs |
| Bridle length overall | 23 feet | 26 feet | 30 feet |
| Individual Leg length | 20 feet | 22 feet | 26 feet |
| Thimble 316LSS Heavy Duty | 5/8″ Heavy Duty | 3/4″ Heavy Duty | 1″ Heavy Duty |
| Forged Dupplex 2205 SS Shackles (with Catamaran Bridles) | 7/16″ S0116-FS12 | 1/2″ S0116-FS13 | 5/8″ S0116-FS16 |
| Mantus Chain Hook | size to fit chain | size to fit chain | size to fit chain |
| Carabiner 5/8″- 3/4″ | SWL 2000 lbs UBS 8000 lbs | SWL 2000 lbs UBS 8000 lbs | SWL 4500 lbs UBS 19000 lbs |
Chaffing gear is sewed on at both ends and does not accommodate rope stretch. Stitching came out after one night on anchor and chafing gear slid down the line. I will remove the stitching from the anchor side of bridle and restitch at the top so it stays in place on the boat side. Just a thoughtless piece of production. Other than that minor issue bridle works well.
