Snubber Pendant

$82.00$120.00

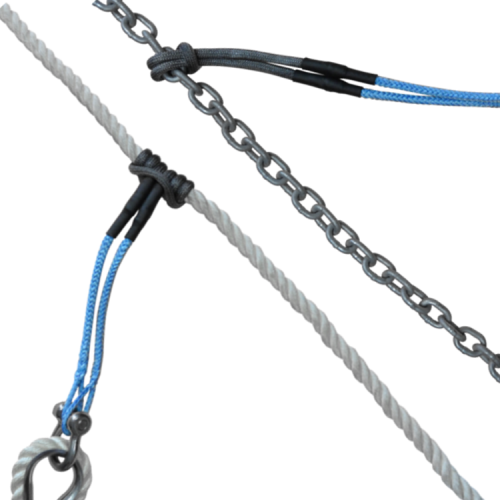

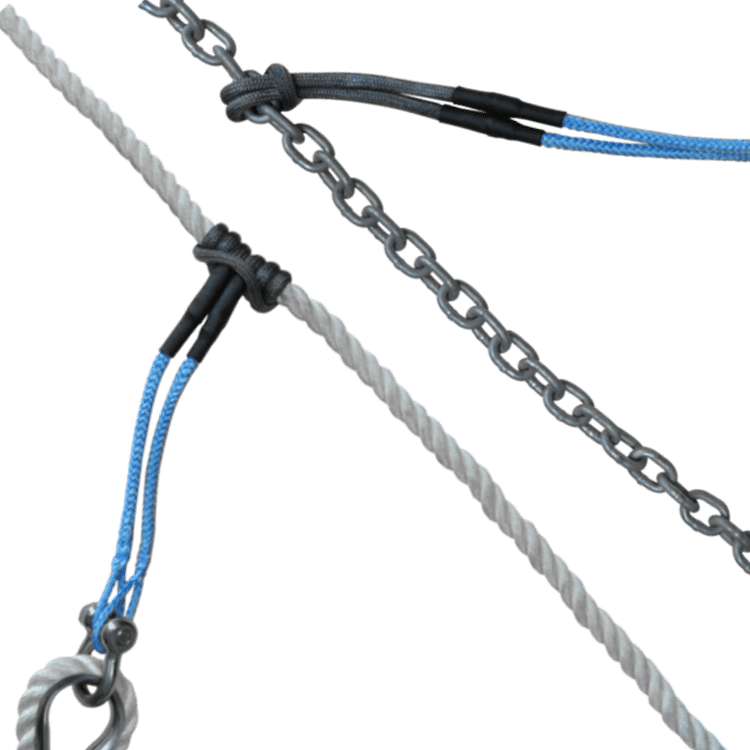

Mantus Snubber Pendant is designed to attach the snubber line to chain/or line rode. It is made from UHMWPE fiber (Ultra high molecular weight polyethylene fiber) material known to be size for size as strong as steel.

Use as Snubber attachement:

While many sailors use chainhooks to attach snubber to chain others prefer to tie a rolling hitch directly onto the chain rode. The advantage of Mantus Snubber Pendant is that it is easier to tie and much easier to remove after any significant loading, further the 5mm Pendant can be used on line rode as well by simply tying a 3 pass prusik knot, thus smaller boats that have mostly line anchor rode can still attach the bridle using the Snubber Pendant.

The same 5 mm pendant is really useful when it is necessary to offload a  line under load. A simple 3 pass prusik knot should be used for attachment and removal is real easy even after > 1000 lbs loading.

All pendants include an appropriately size 316 stainless steel shackle see table below for details

Clear selection
SKU: N/A Category:

Description

Snubber Pendant Sizing

Pendant Size (Line Diameter)Shackle SizeRecommended for following
Chain Size
Pendant Strength UTS as used with two legs
5 mm7/16 inch5/16 inch ( 6-8 mm)12,000 lb
8 mm1/2 inch3/8 inch (10 mm)23,000 lb
10 mm5/8 inch1/2 inch (12 mm)32,300 lb

Additional information

Weight0.4 lbs
Dimensions9 × 5 × 2 in
Snubber Pendant Size

5mm, 8mm, 10mm, 12mm

Q & A

Question
What size snubber for Beneteau 46 with 3/8 chain ? Darrel Heaton asked on March 30, 2022
Answer
Mr. Heaton For the 3/8" chain size recomended 8mm snubber pendant. Nina Zhukova answered on March 31, 2022 store managerstore manager
Upvote (0) Downvote (0)
Loading
Question
How would this snubber perform with 5/8” double braided nylon rode? Rick Feete asked on March 2, 2022
Answer
Mr. Feete Yes, for 5/8" rode we will recommend 5mm snaber pendant. Nina Zhukova answered on March 2, 2022 store managerstore manager
Upvote (0) Downvote (0)
Loading
Question
What is the overall length (end to end) of the 5mm pendent? Chris asked on February 7, 2022
Answer
Chris, overall length (end to end) of the 5mm pendent is 49" Nina Zhukova answered on February 8, 2022 store managerstore manager
Upvote (0) Downvote (0)
Loading
Question
I am looking to use your snubber pendant on a 5/8 anchor rode to be anchor a power boat using a bridle set up. Boat is 35 Regal sport Coupe, measuring 36 feet in length with a weight of 13,000 pounds. My thinking is the 5 mm would be sufficient. Please advise.. Ken Fleming asked on January 25, 2022
Answer
Mr. Fleming for your dimensions you will need 5mm Pendant. Nina Zhukova answered on January 27, 2022 store managerstore manager
Upvote (0) Downvote (0)
Loading
Question
How long overall is the 5mm snubber pendant? I am considering that pendant for my 5/16" anchor chain and 1/2" rope rode. ( I have 150' of chain followed by 75' rope rode). I am assuming the the 5mm pendant is correct for that size chain and rode. Christopher asked on November 12, 2021
Answer
Christopher, that is correct, for sizing that you have, you need 5 mm snubber pendant. Nina Zhukova answered on November 12, 2021 store managerstore manager
Upvote (0) Downvote (0)
Loading
