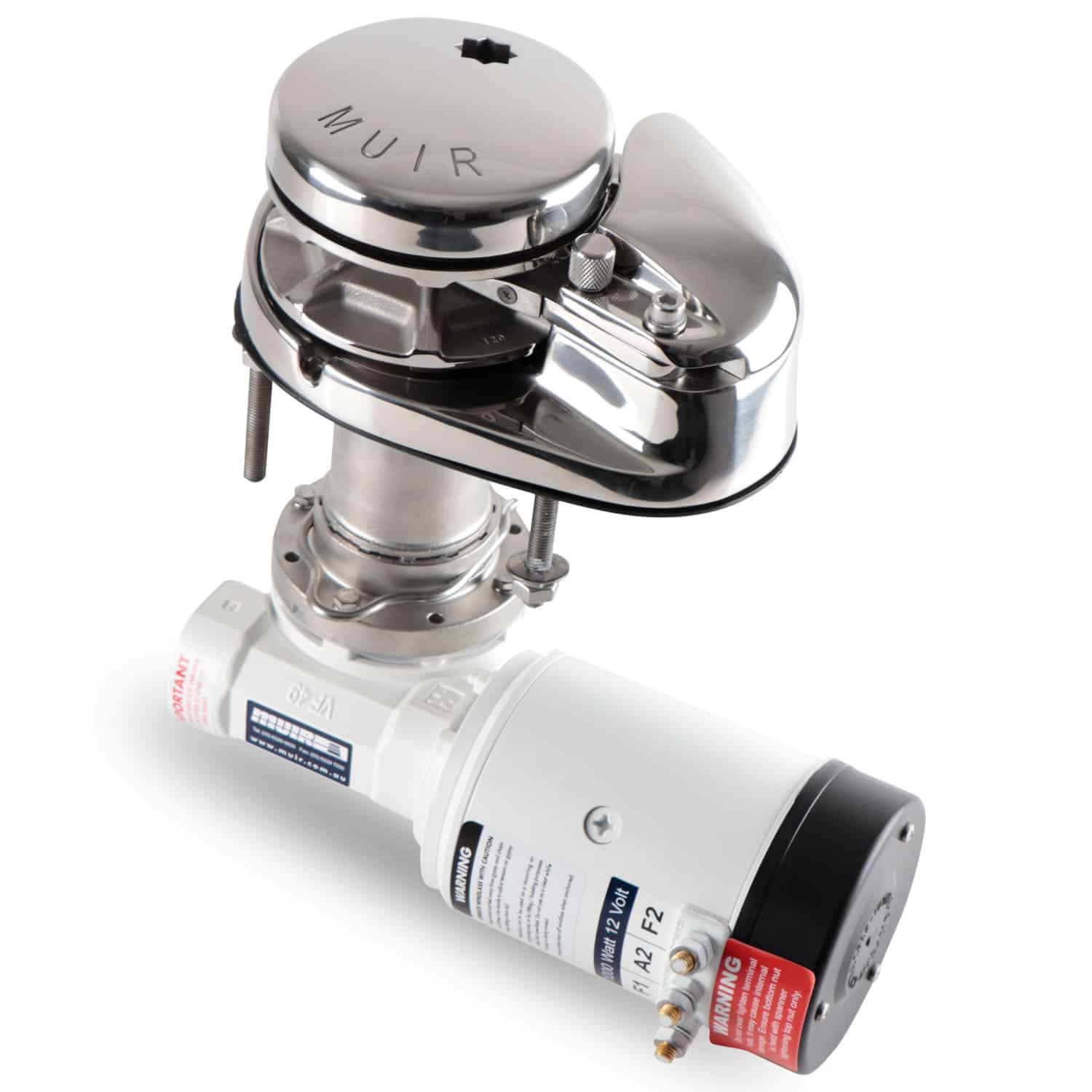

VR/VRC 2200 windlass Muir with Gypsy
$2,741.93 – $2,993.69
Description
| Name | Specifications |
|---|---|
| Recommended Vessel Length | 12-15m |
| Power Supply Options | DC 12V, DC 24V, DC 48V |
| Recommended Muir Circuit Breaker | 150A/100A (12/24V) |
| Motor (Watts) | 1500Watts |
| Amps Workload | 150A/70A (12/24V) |
| Hydraulic Pressure | 10MPa |
| Hydraulic Flow | 15L/min |
| Max Load | 1100Kg |
| Workload | 367Kg |
| Max Line Speed | 30m/min |
| Compatible Chain Sizes | 6 mm (1/4“), 8 mm (5/16“), 10 mm (3/8”) |
| Compatible Rope/Chain Combo | 6mm (1/4″), 8mm (5/16″), 10mm (3/8″) |
| Compatible Rope Sizes | 12mm (1/2″), 14mm (9/16″), 16mm (5/8″) |
| Auto Anchor Compatible | Yes |
| Net Weight DC | 23.5Kg |
| Net Weight Hydraulic | 22.5Kg |
| Manual Operation | MOS (std on most gypsy sizes) |
Additional information
| Weight | 62 lbs |
|---|---|
| Dimensions | 18 × 18 × 13 in |
| Package Includes: | Circuit Breaker and Mounting Panel, Plastic Deck Foot Switch x 1, Quick Fit Adaptor, Deck Mounting Fasteners, Clutch Release Handle, Installation Booklet, Operational Manual |
