  • HR/HC 950 windlass Muir with Gypsy

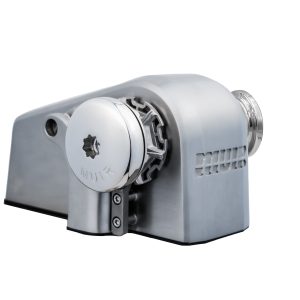

    HR/HC 950 windlass Muir with Gypsy

    From: $1,359.96

    Technical Specifications Name Specifications Recommended Vessel Length 7-11m Power Supply Options DC 12V Recommended Muir Circuit Breaker 80A (12V) Motor (Watts) 750Watts Amps Workload 70A (12V) Max Load 464Kg Workload 154.7Kg Max Line Speed 21m/min Compatible Chain Sizes 8 mm (5/16“) Compatible Rope Sizes 12mm (1/2″), 14mm (9/16″), 16mm (5/8″) Auto Anchor Compatible Yes Net…

    Select optionsDone
Sizing guide for a Horizontal windlass:

BOAT LENGTH (ft)

ANCHOR WEIGHT (lb)

CHAIN SIZE (assumed)

CHAIN WEIGHT (lb)estimate

TOTAL GND TACKLE WEIGHT (lb)

TOTAL GND TACKLE WEIGHT  X 4

WINDLASS MAX PULL

RECOMMENDED HORIZONTAL WINDLASS SIZE

WATTS

16 -20

13

1/4″

75

88

352

813

HR/HC650

550

20-25

17

1/4″

113

130

518

813

HR/HC650

550

25-30

25

1/4″

113

138

550

813

HR/HC650

550

30-35

35

5/16″

188

223

890

1020

HR/HC950

750

35-39

45

5/16″

250

295

1180

1020

HR/HC950

750

39-43

55

5/16″

281

336

1345

1369

HR/HC1600

1200

43-45

65

3/8″

450

515

2060

2427

HR/HC2500

1500

45-50

85

3/8″

450

535

2140

2427

HR/HC2500

1500

50-60

105

1/2″

750

855

3420

3637

HR/HC3500

1700

60-70

125

1/2″

750

875

3500

3637

HR/HC4000

1700

70-80

155

5/8″

1149

1304

5216

4629

HR/HC4200

2200

80-90

175

5/8″

1149

1324

5296

ASK MUIR FOR REC
